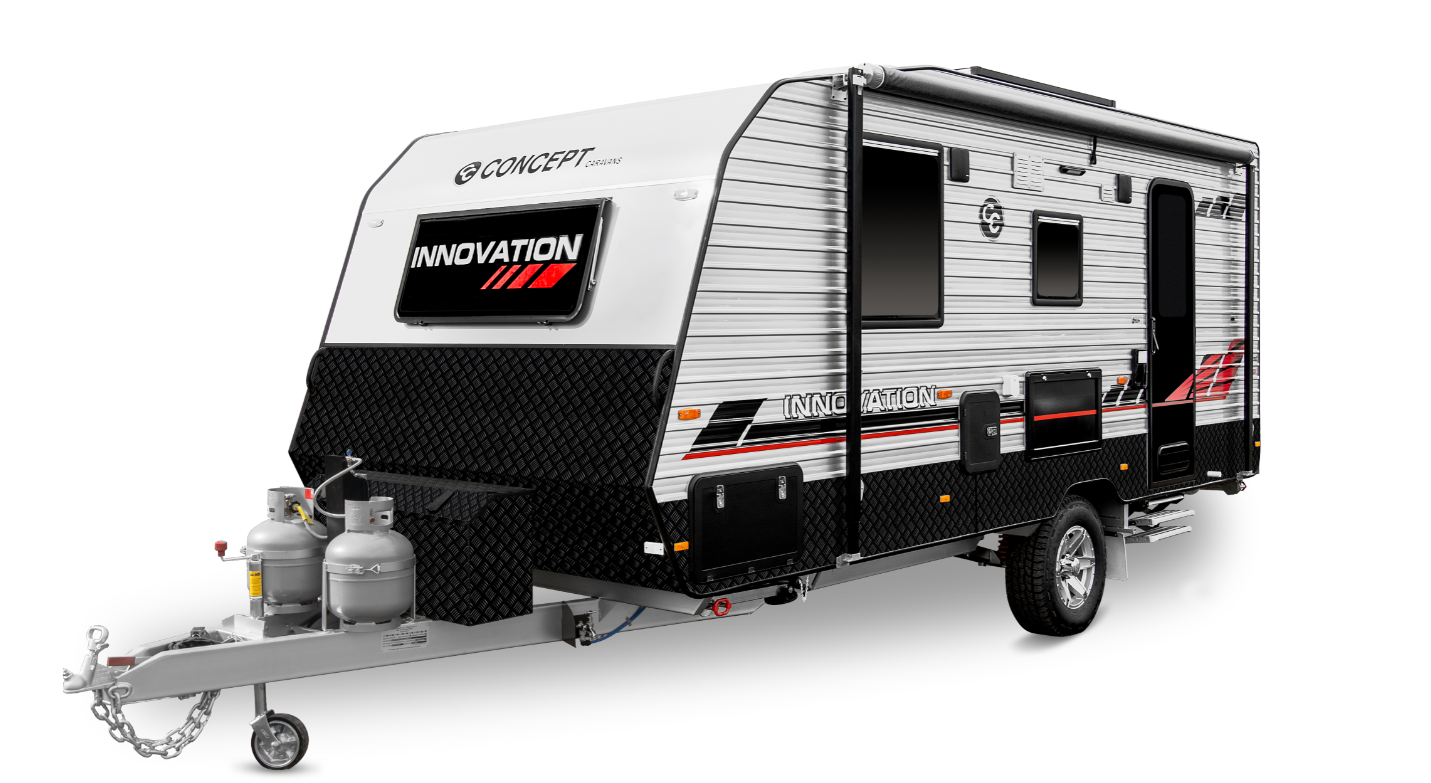

Innovation

The innovation is Concept’s range of vans that have been designed around practicality and must haves and with the choice of rear or mid door entries, it lives up to its name. Built to the same demanding standards as all Concept Caravans, the innovation offers spacious and contemporary interior with layouts and van lengths to suit all families needs.

Layout Configuration

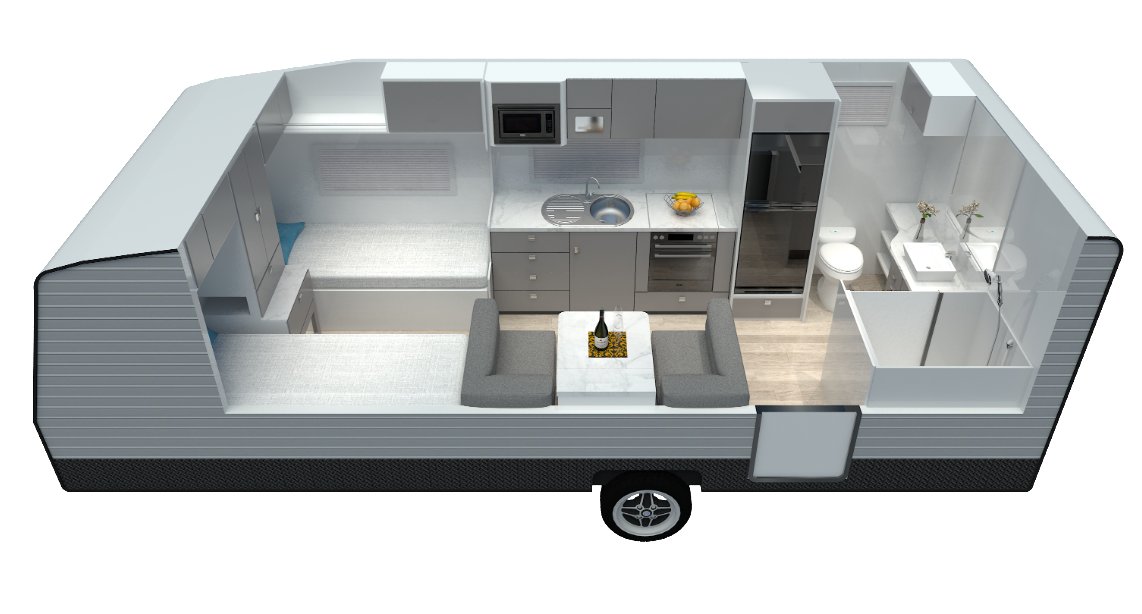

Innovation 540

Length: 17’6″

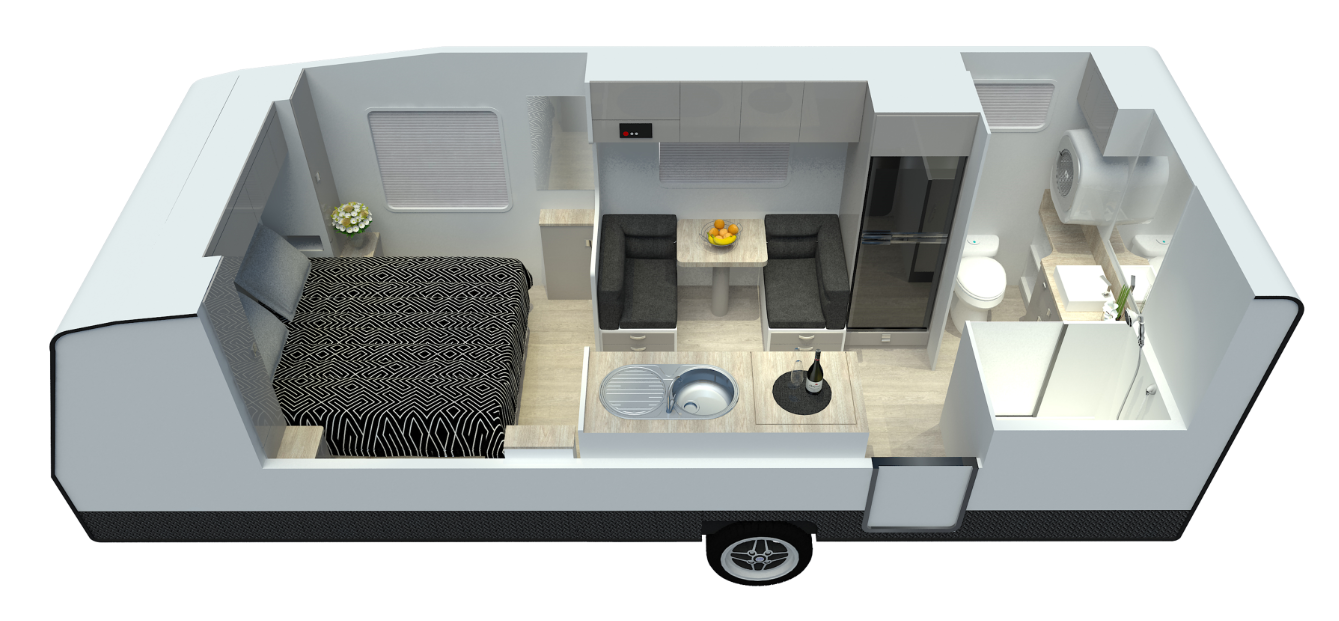

Innovation 550

Length: 18ft

Exterior Body Length: 5730mm

Exterior Width (incl. awning): 2450mm

Interior Height: 2030mm

Travel Length: 7765mm

External Travel Height: 2980mm

Ball Mass (Empty) approx.: 190kg

Tare Weight approx.: 2200kg

GTM Weight approx.: 2440kg

ATM Weight approx.: 2630kg

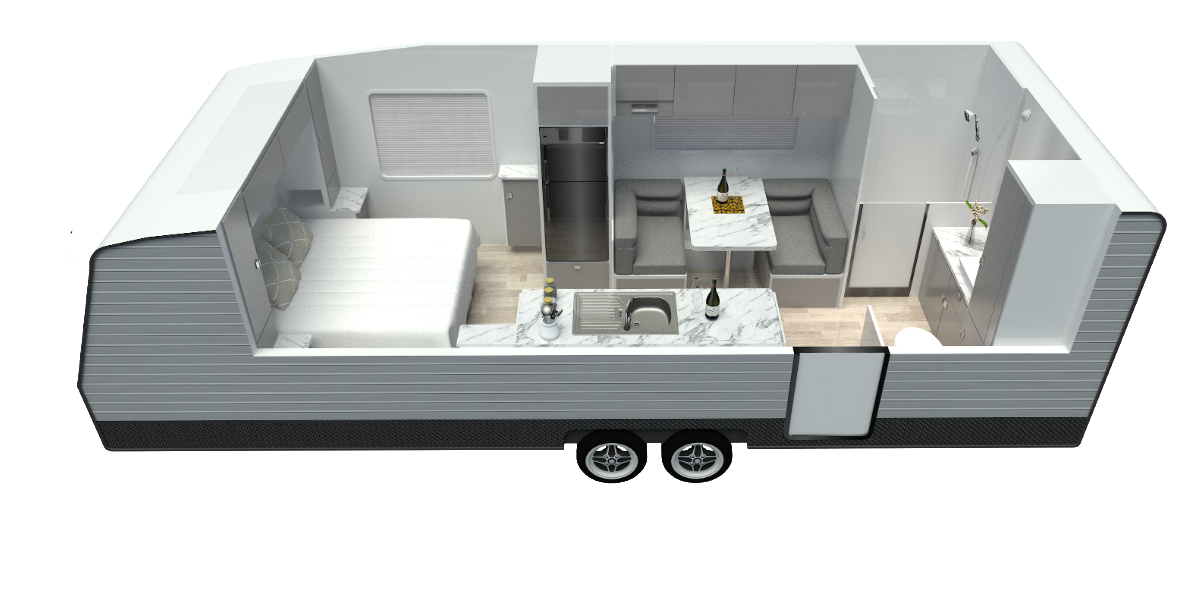

Innovation 600

Length: 19’6″

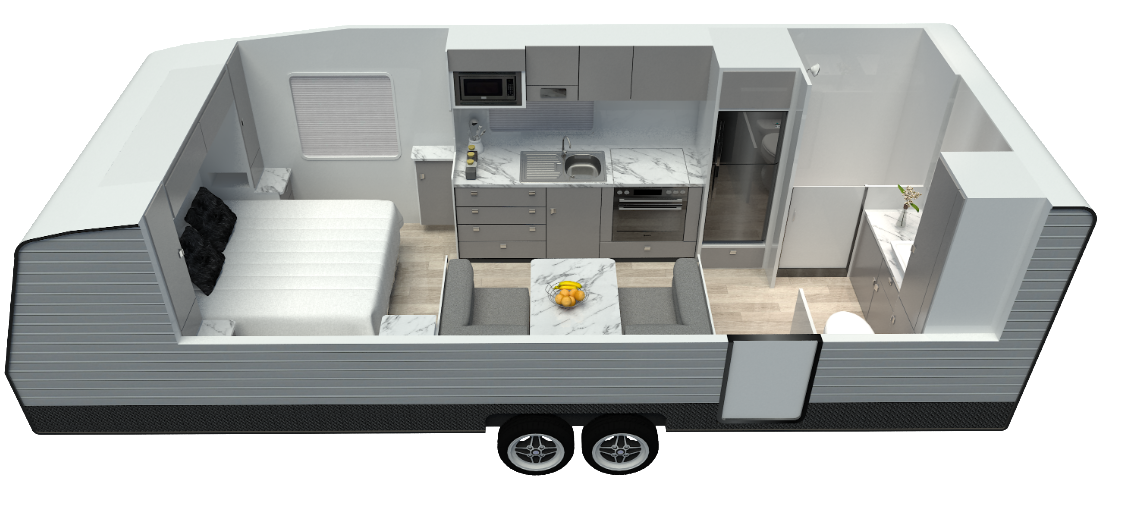

Innovation 640

Length: 21ft

Exterior Body Length: 6430mm

Exterior Width (incl. awning): 2450mm

Interior Height: 2030mm

Travel Length: 8460mm

External Travel Height: 2980mm

Ball Mass (Empty) approx.: 190kg

Tare Weight approx.: 2810kg

GTM Weight approx.: 2440kg

ATM Weight approx.: 2630kg

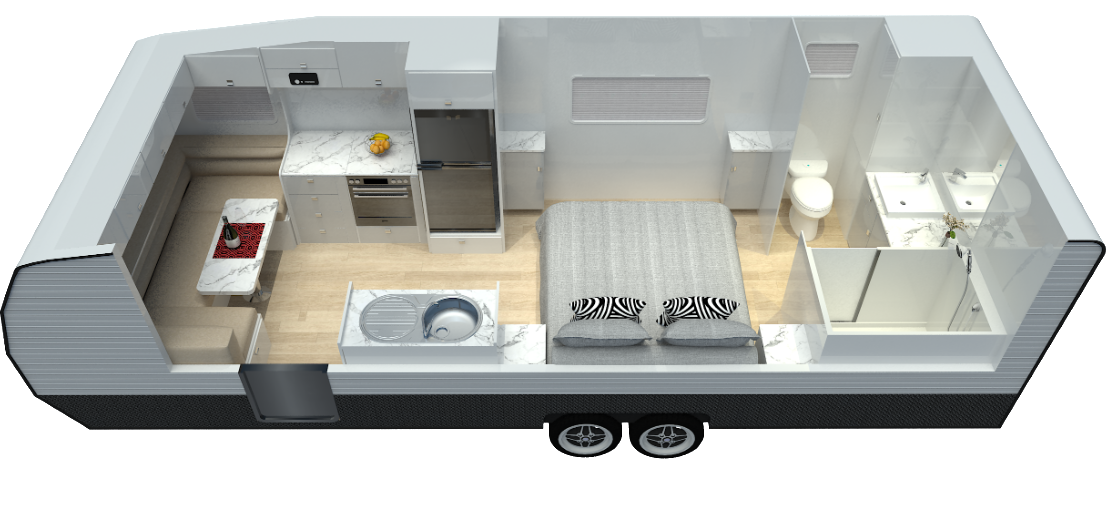

Innovation 650

Length: 21’6″

Exterior Body Length: 6670mm

Exterior Width (incl. awning): 2450mm

Interior Height: 2030mm

Travel Length: 8750mm

External Travel Height: 3140mm

Ball Mass (Empty) approx.: 270kg

Tare Weight approx.: 2560kg

GTM Weight approx.: 2800kg

ATM Weight approx.: 3060kg

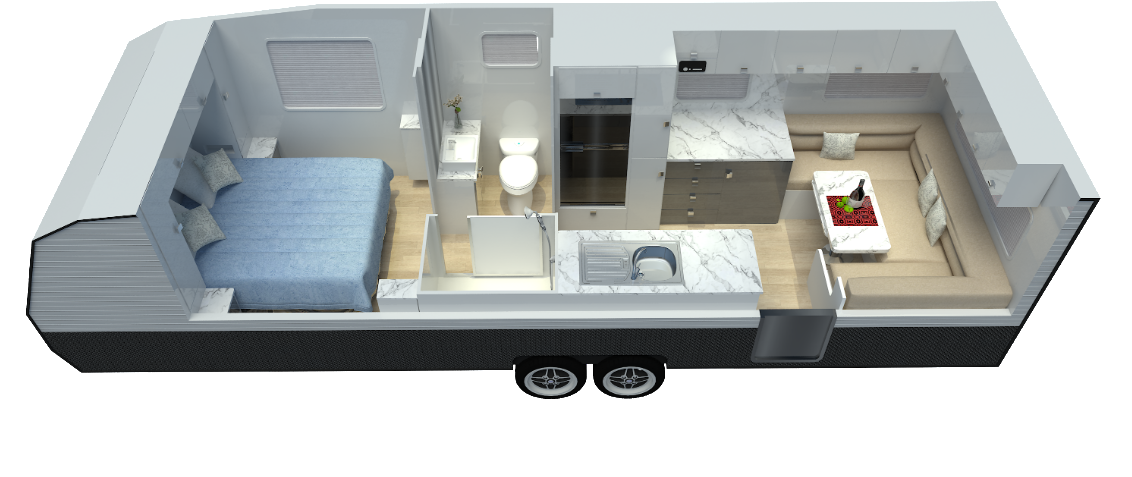

Innovation 670

Length: 22ft

Exterior Body Length: 6930mm

Exterior Width (incl. awning): 2450mm

Interior Height: 2030mm

Travel Length: 8965mm

External Travel Height: 3140mm

Ball Mass (Empty) approx.: 210kg

Tare Weight approx.: 2670kg

GTM Weight appox.: 2950kg

ATM Weight approx.: 3170kg

Innovation 705

Length: 23ft

Exterior Body Length: 7150mm

Exterior Width (incl. awning): 2450mm

Interior Height: 2030mm

Travel Length: 9185mm

External Travel Height: 2980mm

Ball Mass (Empty) approx.: 240kg

Tare Weight approx.: 2720kg

GTM Weight approx.: 3030kg

ATM Weight approx.: 3260kg

Exterior

  • Aerodynamic body shape
  • Silver aluminum cladding with smooth composite aluminium roof
  • Black composite rear panel
  • Camec triple locking door with 2 radius corners
  • Dometic double glazed windows with integrated blinds and flyscreens
  • Chrome LED Narva tail lamps

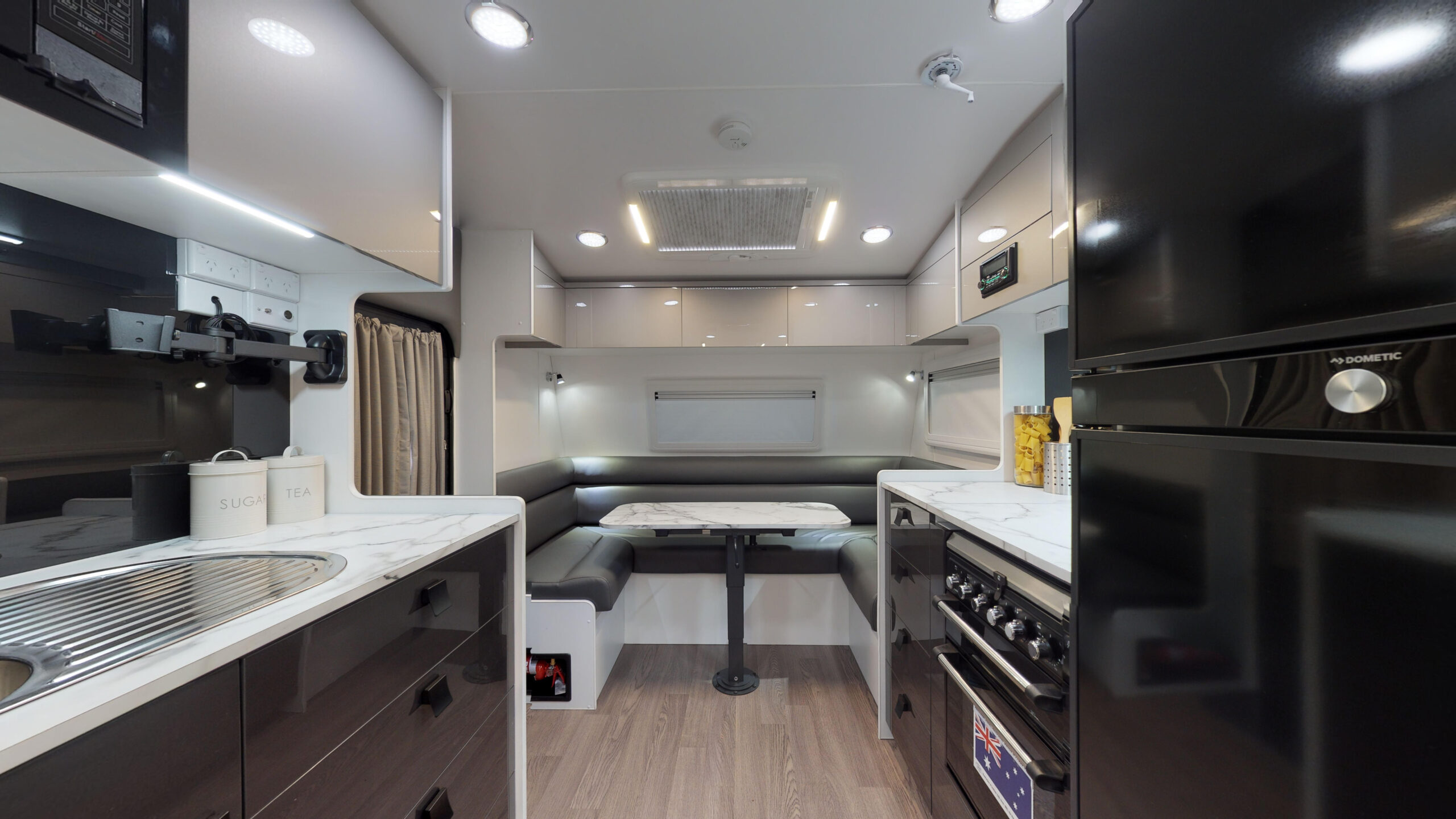

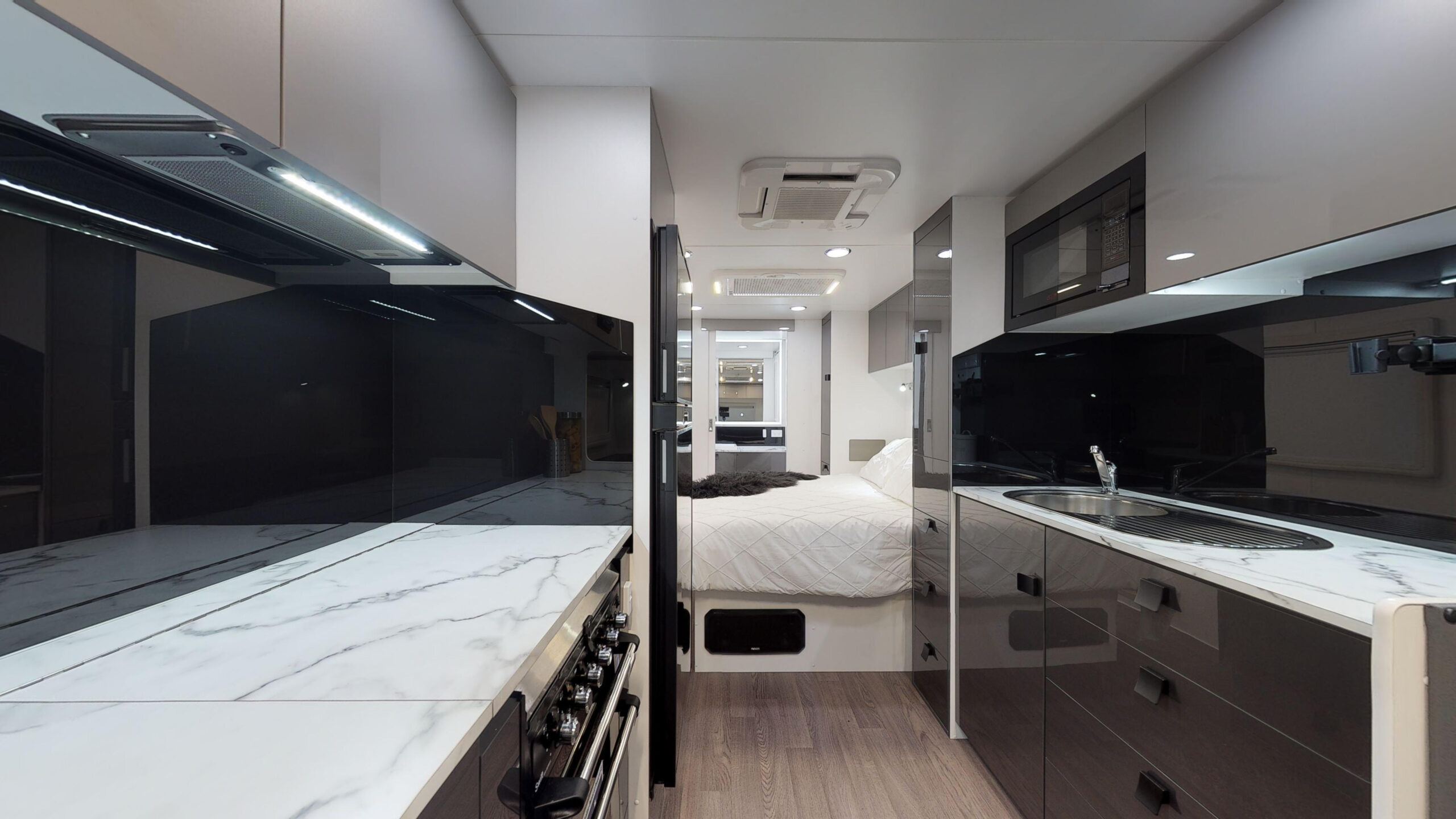

Interior

  • Modern flush finish solid cabinetry
  • Soft closing drawers
  • The latest in gloss & matt finish cupboard doors
  • Vega’s ‘Leather Look’ upholstery

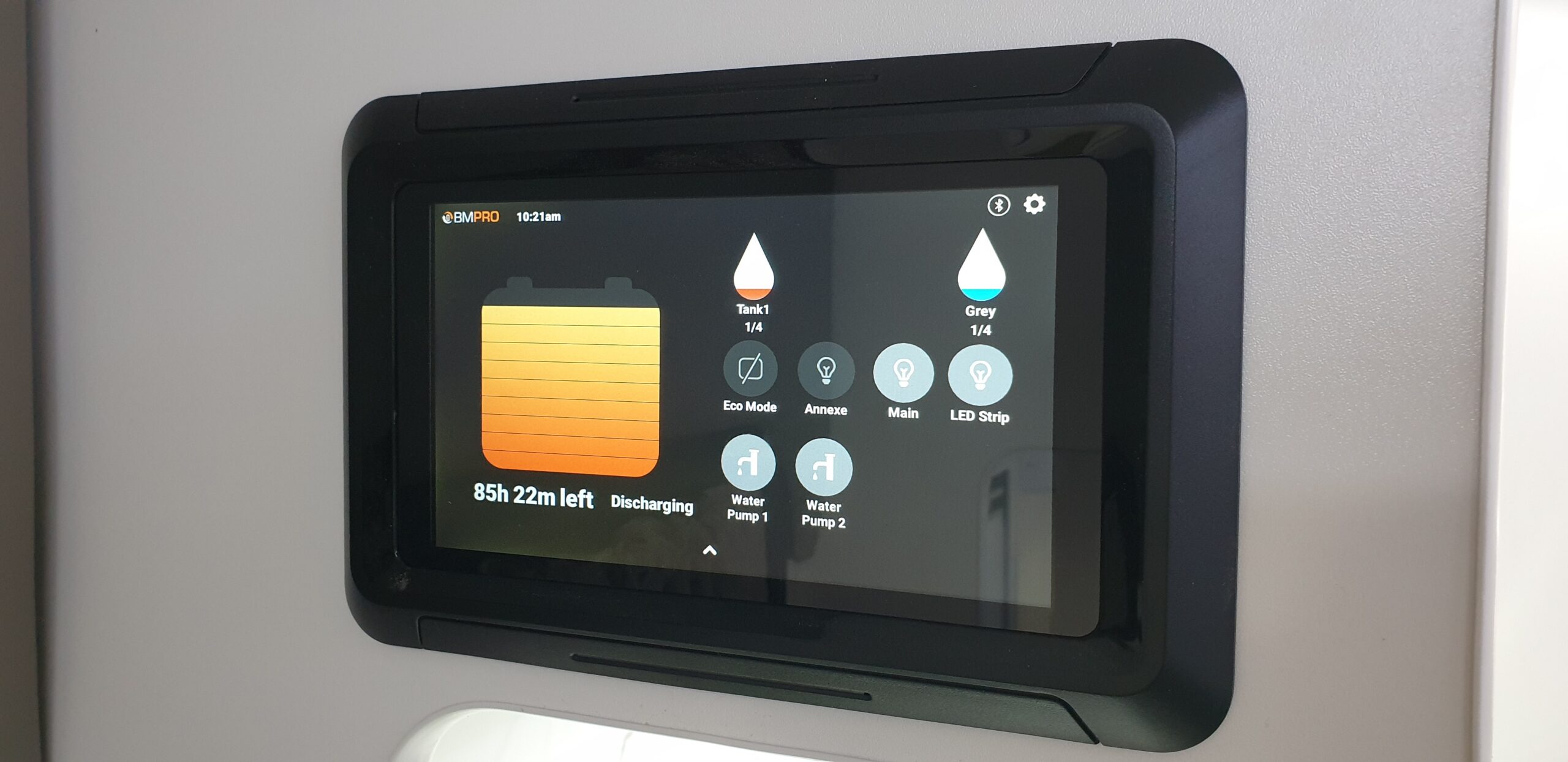

  • BMPRO Charger with odyssey touch panel for battery and tank level monitoring
  • 1x 170W Solar panel fitted with digital regulator
  • 1x100amp AGM Deep cycle battery Bluetooth Large Screen DVD/Radio
  • 24″ LED Television
  • Wineguard HV TV Antenna
  • Dometic fan cooled 3-way fridge
  • Ibis Mk4 reverse-cycle air-conditioning with remote control
  • Washing Machine
  • Truma ultra rapid stainless steel gas/electric hot water system
  • Microwave oven with insert surround
  • External mounted – integrated power inlet the circuit breaker
  • LED striplights to kitchen & overhead cabinets
  • Waeco reverse camera (car kit supplied loose)
  • Narva LED touch lighting interior dimmable roof lights
  • 12V/USB fittings to robe cubby  holes dimmable roof lights
  • 12V/USB fittings to robe cubby holes and Dinette

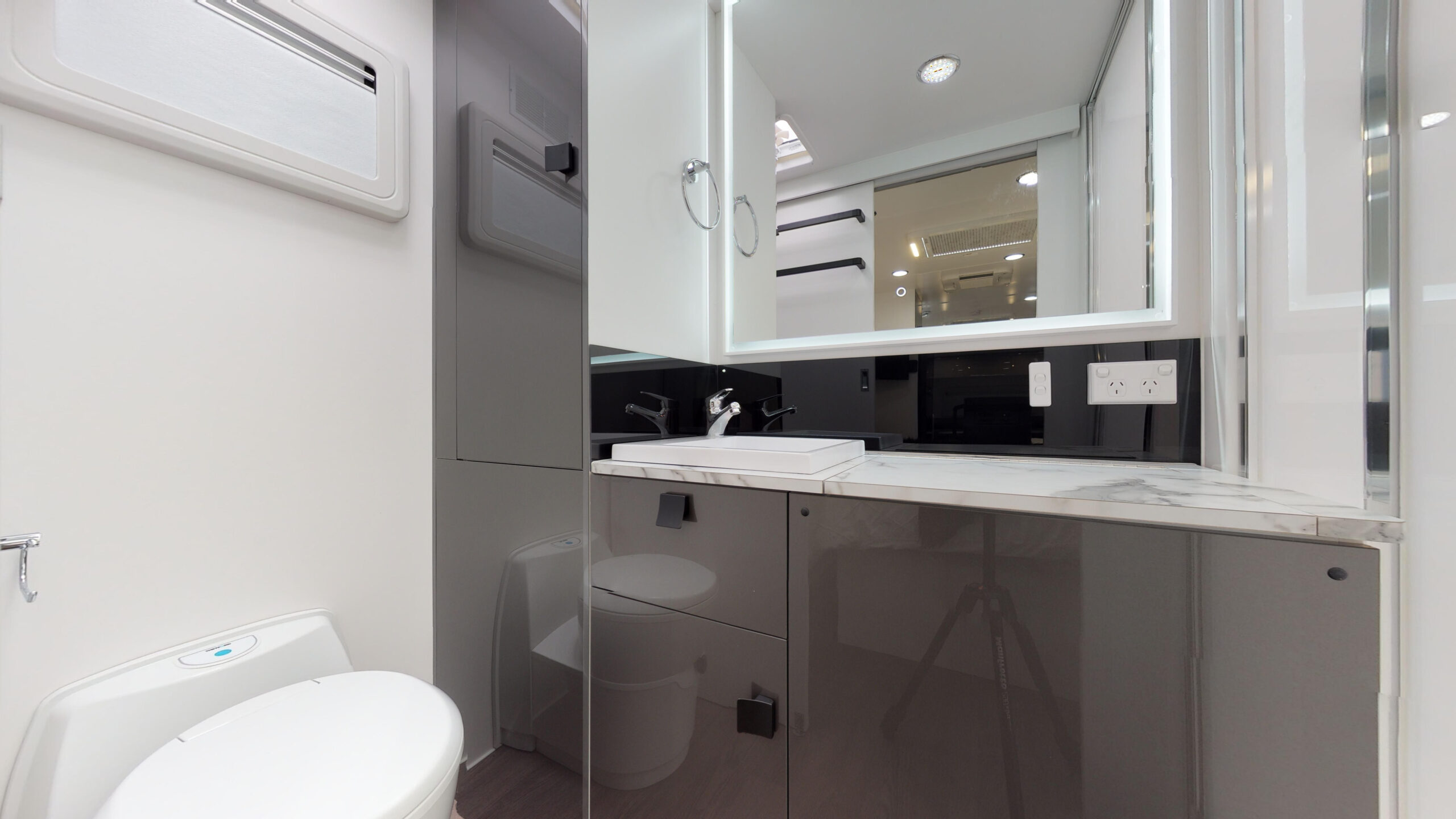

  • Touch sensitive backlit mirror over vanity
  • ALKO drop down corner stabilizers
  • ALKO electric brakes to all wheels
  • Brakesafe breakaway safety system
  • Fire extinguisher
  • Smoke detector featuring hush button
  • Gas regulator and A-Frame tap protective cones
  • Lockable security door
  • Dual 9kg gas bottles
  • Extractor fan hatches fitted over toilet and shower
  • Raised fridge
  • Fold down picnic table
  • Cutlery tray fitted to kitchen drawer
  • Common outlet for all waste water
  • Water tap fitted to a A-frame with stone guard
  • External TV entertainment box with Fusion speakers (n/a 705)

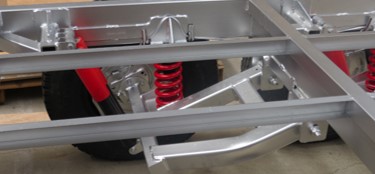

  • Supergal Chassis with extended A frame and mesh rack
  • 3,500kg Ball Coupling
  • DO35 Coupling to 650+ 670 Models
  • All terrain tyres with stylish alloy wheels
  • Pull out door step
  • Bumper bar with spare wheel mounted
  • 6’8″ Internal Height
  • Concept ‘Power Management Cabinet’
  • Fibreglass batt insulation to roof
  • Styrofoam insulation to walls
  • Spacious fully enclosed fibreglass shower to ceiling height
  • Towel rail, ring and toilet roll holder fitted to ensuite
  • Recessed Oven with electric hotplate
  • French made high wear floating vinyl flooring
  • Internal and external handles at entry
  • Genuine Leather Upholstery
  • ALKO electric stability control
  • Crimsafe mesh flyscreen door
  • External shower tap set
  • Fan forced Oven
  • Grey Water Tank
  • Tool box (large) fitted to A-Frame with slideout to suit Honda EU20i generator
  • Tool box (small) fitted to A-Frame
  • Water tap and filter

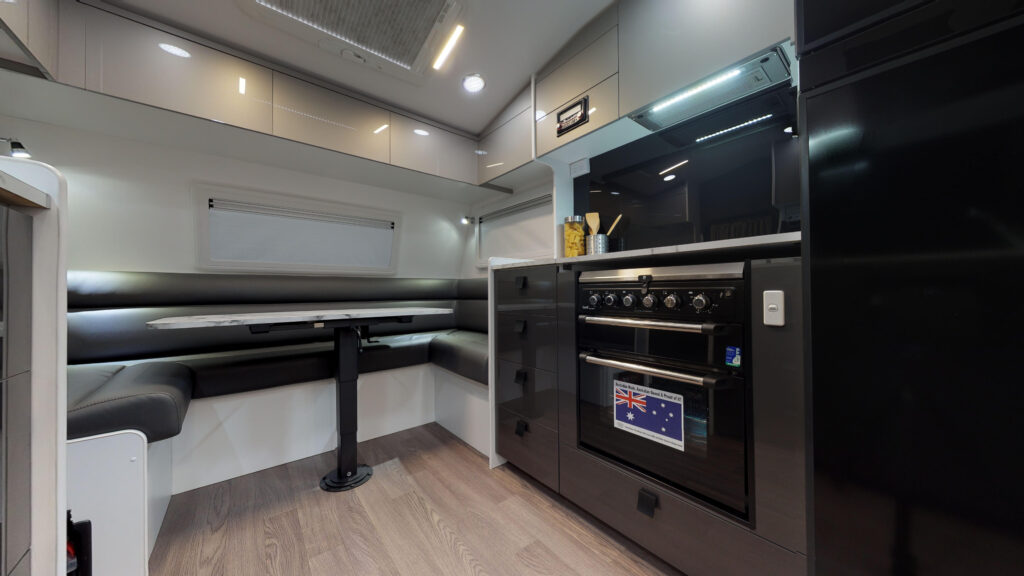

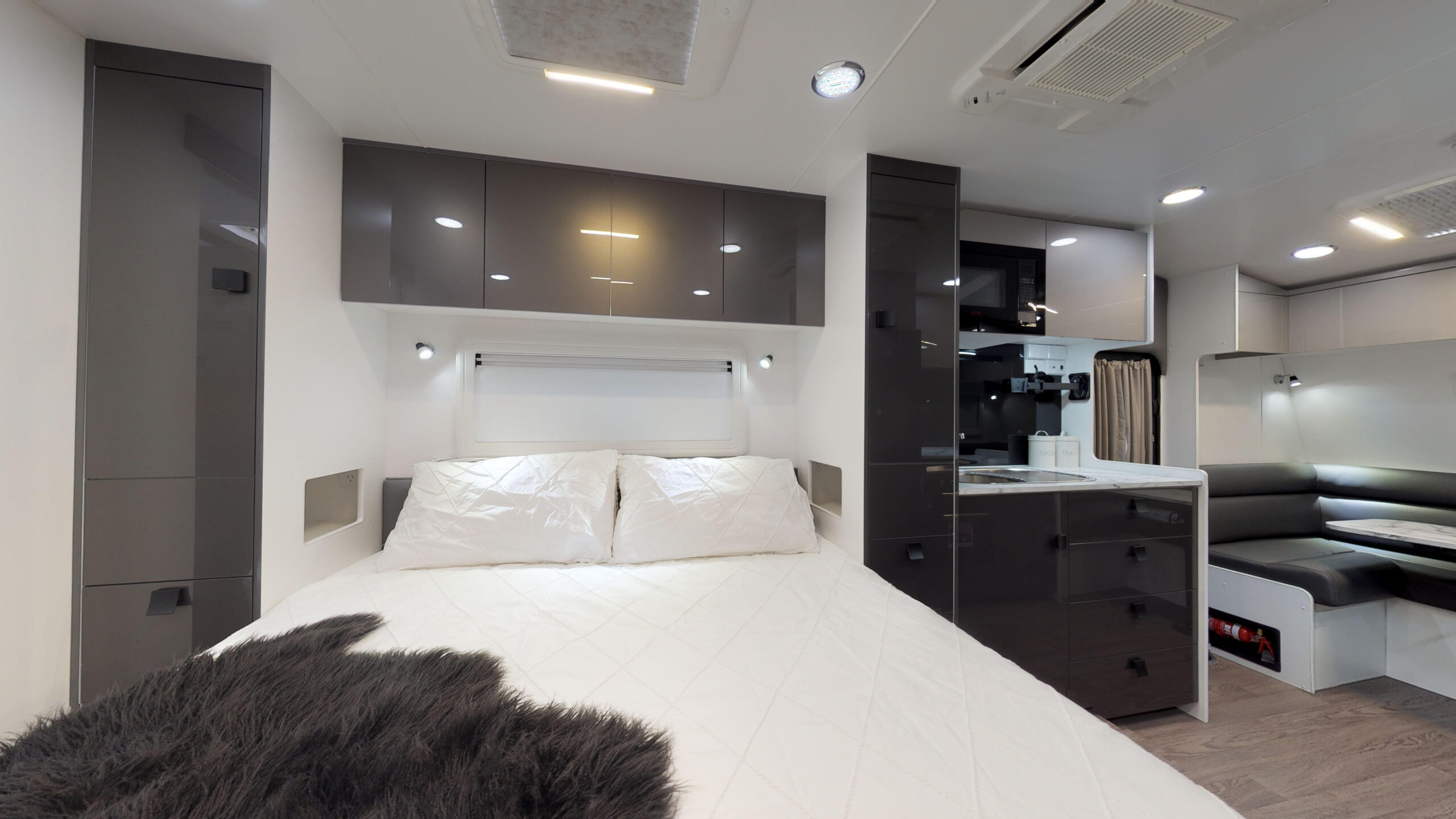

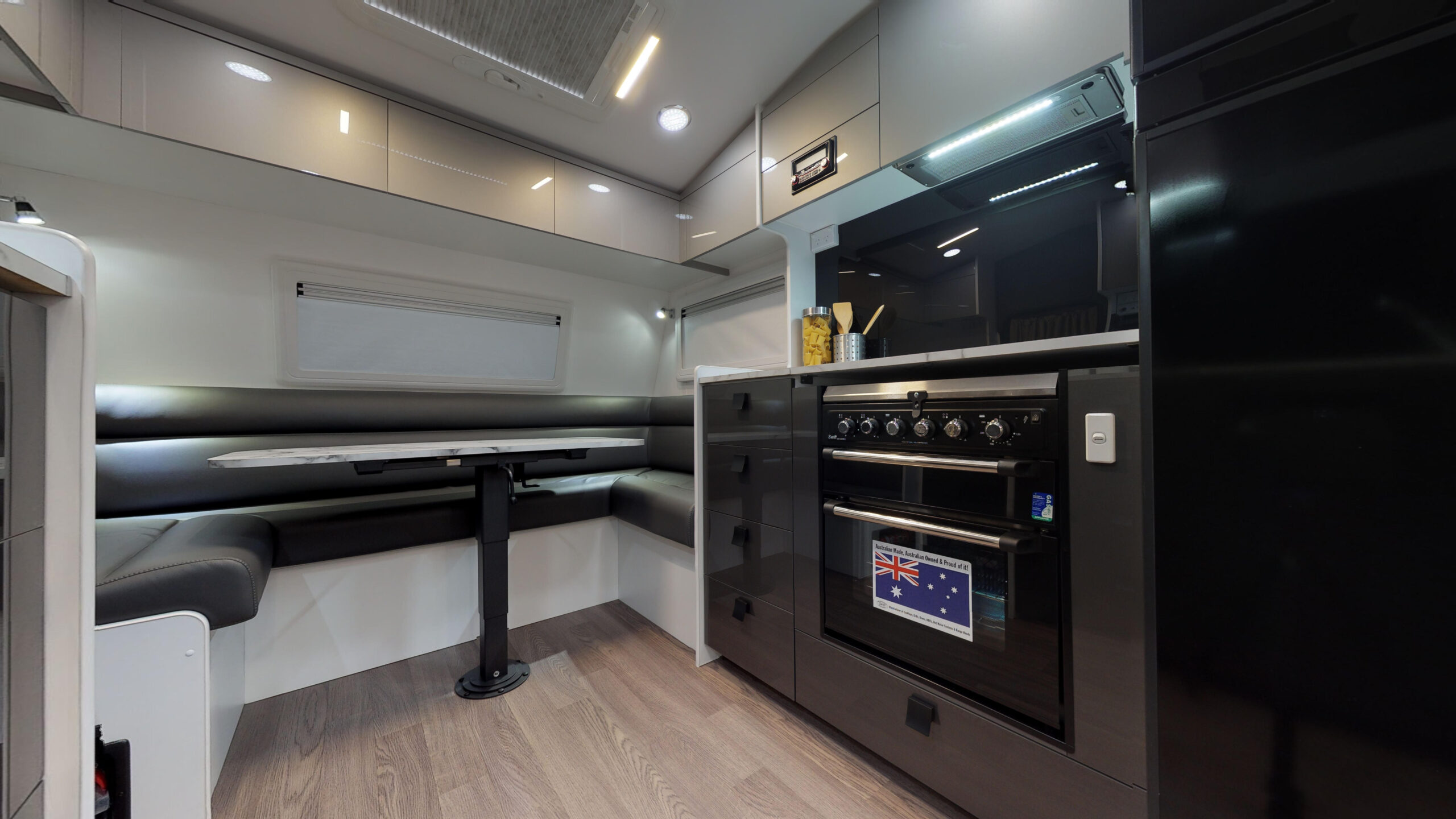

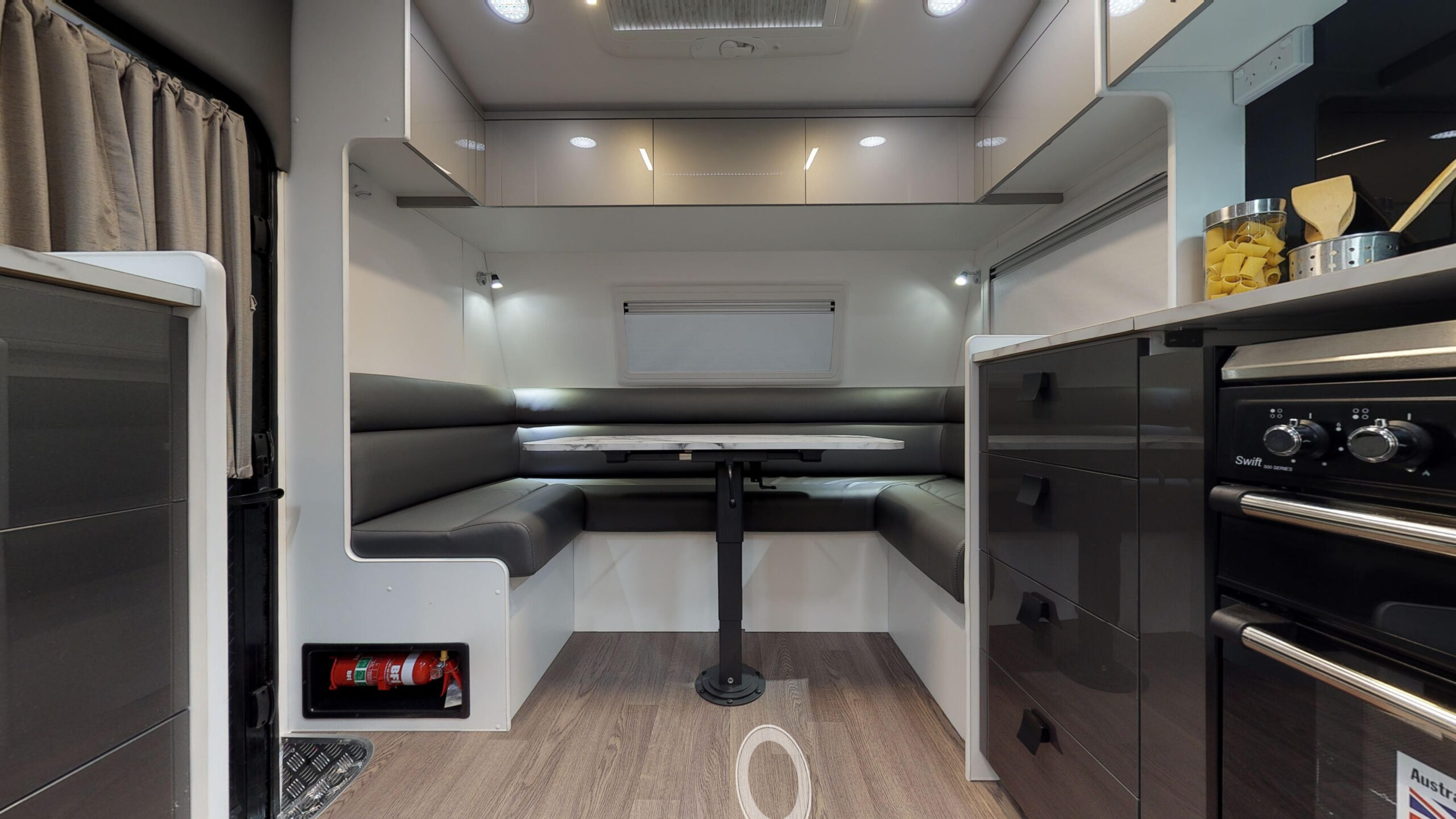

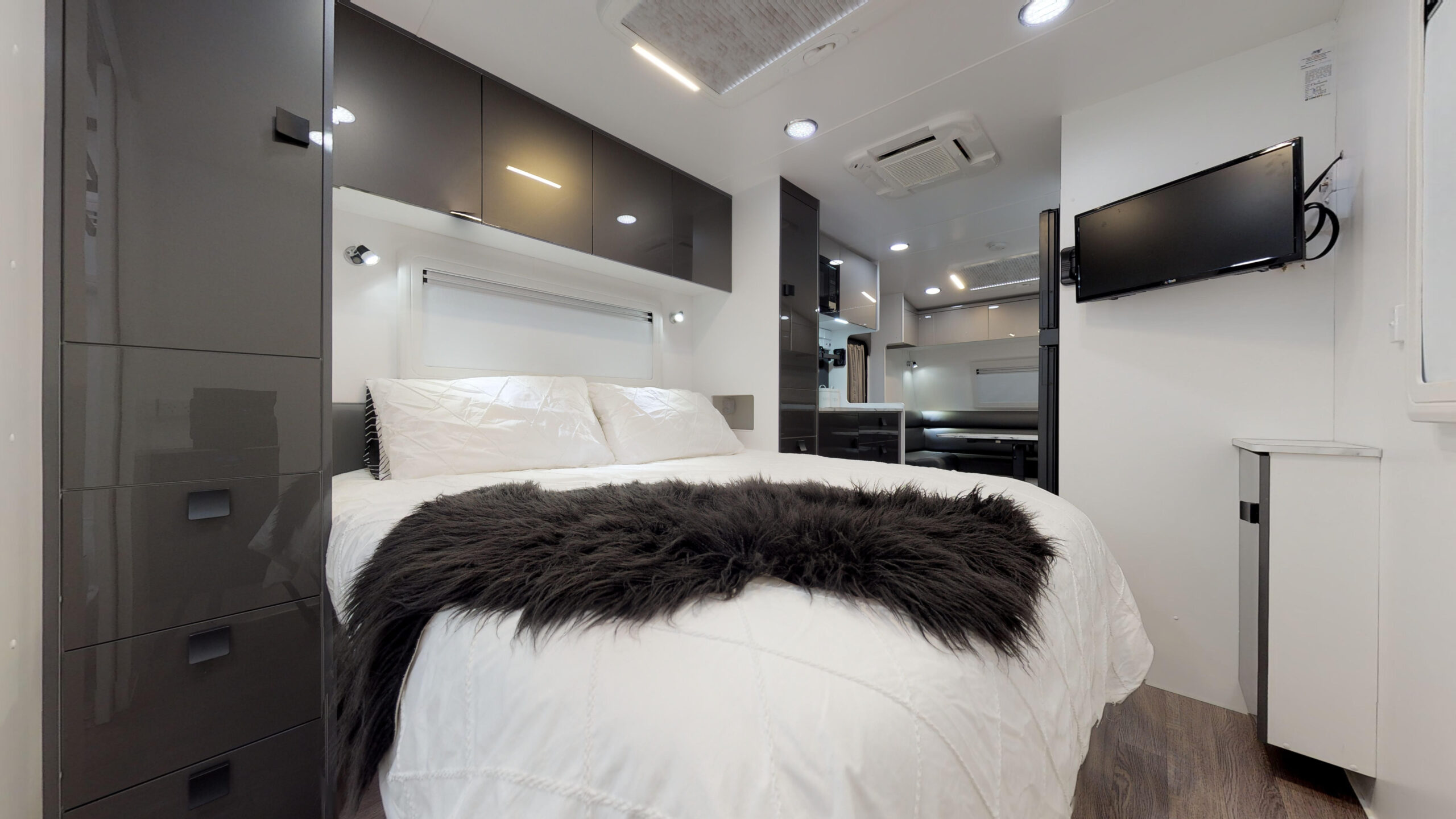

Gallery
